TRENCHERS

TRENCHER, 6"x 36", TRACK DITCH WITCH

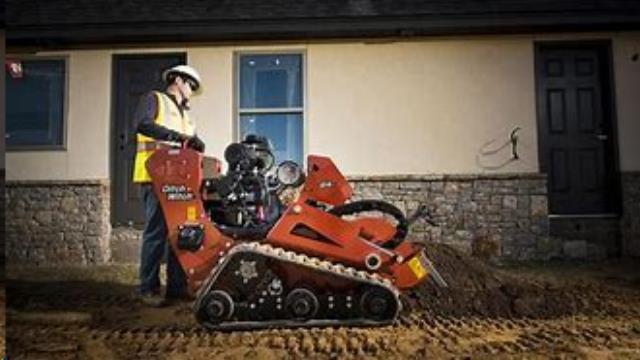

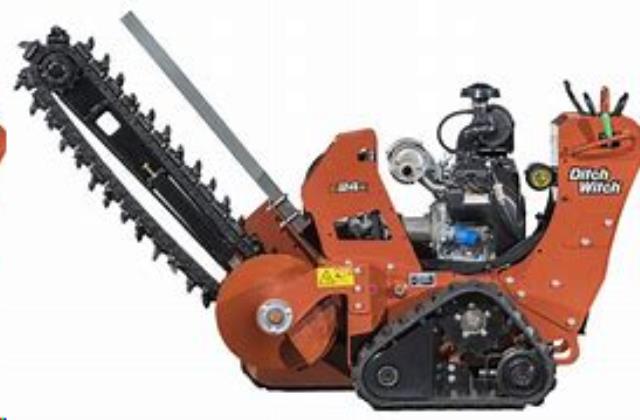

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: DITCH WITCH

Model: C24X

Daily: $215.00

Weekly: $745.00

Monthly: $2,235.00

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

Operating weight (up to): 1,915 lb
A reliable 24-hp (17.9-kW) Honda engine keeps the C24X performing.
Up to 36 digging depth for efficient installation of pipe and cable.
Newly designed hydraulic system eliminates vertical shafts and belts, resulting in a simple, reliable unit with no linkages to adjust.
Utilizes the Ditch Witch 35K digging system, specifically designed to work with Ditch Witch trenchers to optimize production.
Exclusive, patented CX Track design puts more track on the ground for better traction while increasing stability for better production.
The shorter left track on the CX Track design allows for a more compact piece of equipment than competitive designs, offering more maneuverability in tighter spaces.
Hydrostatic, skid-steer style steering provides easier operation.
Increased visibility of the workstation improves operator productivity.
SPECS:
Headshaft height: 13.7"
Length (up to): 94"
Width, transport: 35.8"
Height, transport (up to): 63"
Centerline trench to outside edge machine
Left: 17.2"
Right: 18.6"
Engine: Honda GX690
Fuel: Gasoline
Cooling medium: Air
Number of cylinders: 2
Manufacturer s net horsepower rating: 22 hp
Rated speed: 3,600 rpm
Fuel consumption @ rated power: 1.77 gph
Ground drive: Hydraulic, Infinite variable from zero to maximum, speed and direction control
Digging chain drive: Hydraulic direct drive, one speed forward and reverse
Pump drive: Direct drive from engine
Track width: 8"
Trencher drive Hydraulic: Direct drive
Digging chain: 33K / 35K
Ground pressure: 4.5 psi
Transit forward: 176 fpm
Transit reverse: 136 fpm
Digging chain speed @ 3,600 rpm: 33/35K 309 fpm
Spoil handling Auger type: Single, open end
Auger diameter: 17"
Trench cleaner type: Mechanical
Trench cleaner size: 4"- 6"
Operating weight (up to): 1,915 lb
Fuel tank: 6.2 gal
Engine oil: 1.8 qt
Hydraulic system: 11 gal
TRENCH SIZE, MAX Depth: 36"
TRENCH SIZE, MAX Width: 6"
NOISE LEVEL Ear sound pressure: 91 dBA per ISO 6394
Overall sound pressure: 100 dBA per ISO 6393

* Prices are subject to change. Applicable sales tax, delivery, and other fees are not included in this price estimate.

* Please call us with any questions about our trencher 6 inch x 36 inch track ditch witch in Reading PA and Berks County PA.
